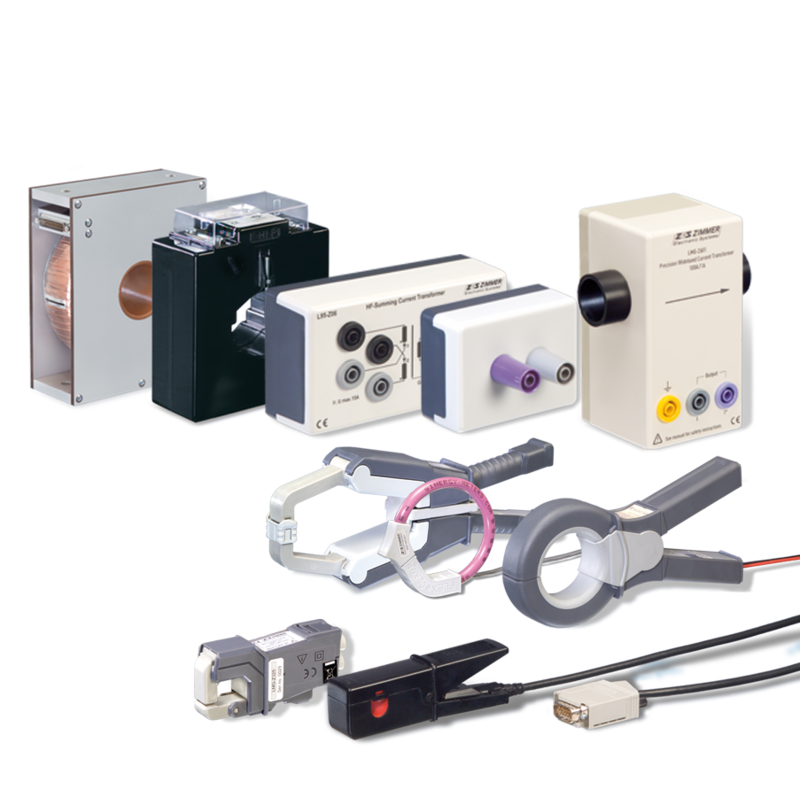

Further Current Sensors
Product description
Expanding precision power measuring ranges of ZES ZIMMER LMG series
In case You need technical documentation or have questions in regard to discontinued products (e.g. PSU series power transducers), please do not hesitate to
contact us.
Current Clamps
Sensor (Order No.)
Lower Corner Freq.
Upper Corner Freq.
Precision
Current Range
Primary Connection
LMG670
LMG500
LMG450
LMG95 LMG95e
Typical Applications
L60-Z406
5Hz
50kHz
0.20 %
40A
Clamp-On
x
-
-
-
Frequency Inverter Output
L60-Z60
30Hz
10kHz
0.50%
1000A
x
-
-
-
General Purpose
L60-Z66
30Hz
10kHz
0.50%
3000A
x
-
-
-
General Purpose
L60-Z68
DC
2kHz
2.00%
1000A
x
-
-
-
DC-Clamp
LMG-Z322
30Hz
10kHz
0.50 %
1000A
x
x
x
x
General Purpose
LMG-Z329
40Hz
5kHz
0.50 %
3000A
x
x
x
x
General Purpose
LMG-Z406
5Hz
50kHz
0.20 %
40A
-
x
x
x
Frequency Inverter Output
L45-Z10
2Hz
40kHz
0.15 %
1000A
-
x
x
x
Frequency Inverter Output
L45-Z16
5Hz
10kHz
0.15 %
3000A
-
x
x
x
Frequency Inverter Output
L45-Z26
DC
2kHz
1.60 %
1000A
-
x
x
x
DC-Clamp
Rogowski Clamps
Sensor (Order No.)
Lower Corner Freq.
Upper Corner Freq.
Precision
Current Range
Primary Connection
LMG670
LMG500
LMG450
LMG95 LMG95e
Typical Applications
L45-Z32-Flex500
10Hz
5kHz
6.10 %
500A
Flexible Clamp-On
-
x
x
x
50Hz Power Quality, for difficult access Areas
L45-Z32-Flex1000
10Hz
5kHz
3.10 %
1000A
-
x
x
x
L45-Z32-Flex3000
10Hz
5kHz
3.10 %
3000A
-
x
x
x
Hall Current Transducer
Sensor (Order No.)
Lower Corner Freq.
Upper Corner Freq.
Precision
Current Range
Primary Connection
LMG670
LMG500
LMG450
LMG95 LMG95e
Typical Applications
L45-Z28-Hall50
DC
200kHz
0.90 %
50A
Clamp-On
-
x
x
x
Frequency Inverter Output, Frequency Inverter DC Link, Low Cost
L45-Z28-Hall100
DC
200kHz
0.70 %
100A
-
x
x
x
L45-Z28-Hall200
DC
100kHz
0.65 %
200A
-
x
x
x
L45-Z29-Hall300
DC
100kHz
0.40 %
300A
-
-
x
-
L45-Z29-Hall500
DC
100kHz
0.80 %
500A
-
-
x
-
L45-Z29-Hall1000
DC
150kHz
0.40 %
1000A
-
-
x
-
L45-Z29-Hall2000
DC
100kHz
0.30 %
2000A
-
-
x
-
L50-Z29-Hall300
DC
100kHz
0.40 %
300A
-
x
-
x
L50-Z29-Hall500
DC
100kHz
0.80 %
500A
-
x
-
x
L50-Z29-Hall1000
DC
150kHz
0.4 %
1000A
-
x
-
x
L50-Z29-Hall2000
DC
100kHz
0.3 %
2000A
-
x
-
x
Hall100-L6
DC
100kHz
±0.5 %
100A
x
-
-
-
Hall300-L6
DC
100kHz
±0.5 %
300A
x
-
-
-
Hall500-L6
DC
100kHz
±0.5 %
500A
x
-
-
-
Hall1000-L6
DC
100kHz
±0.5 %
1000A
x
-
-
-
Hall2000-L6
DC
100kHz
±0.5 %
2000A
x
-
-
-
High Frequency Sensors
Sensor (Order No.)
Lower Corner Freq.
Upper Corner Freq.
Precision
Current Range
Primary Connection
LMG670
LMG500
LMG450
LMG95 LMG95e
Typical Applications
L95-Z06 / L95-Z06HV
5kHz
500kHz
0.50 %
15A
4mm sockets / wire
x
x
x
x
Summing Current Transducer, Lighting Applications, Ultrasonic
