Product Description

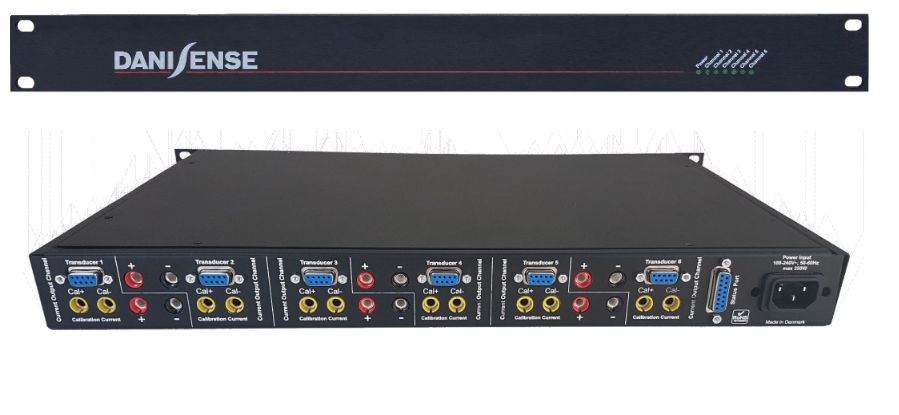

Fully configurable dedicated 1U high 6-channel system interface unit for ultra-stable, high precision fluxgate technology DS series current transducers. Powers up to 6 x DS50 to DS2000 at the same time. Supports calibration windings and has 6 factory configurable modules for voltage output modules (VOM).
Features
- Compact 19” rack mount 1U height
- Output voltage from current transducers are available in XLR mini connectors
- Individual or serial access to calibration windings of all 6 transducers via 4mm banana plugs
- 15-pin DSUB connector provides access to isolated status signals of each transducer and power
- 6 slots for voltage output modules (VOM)

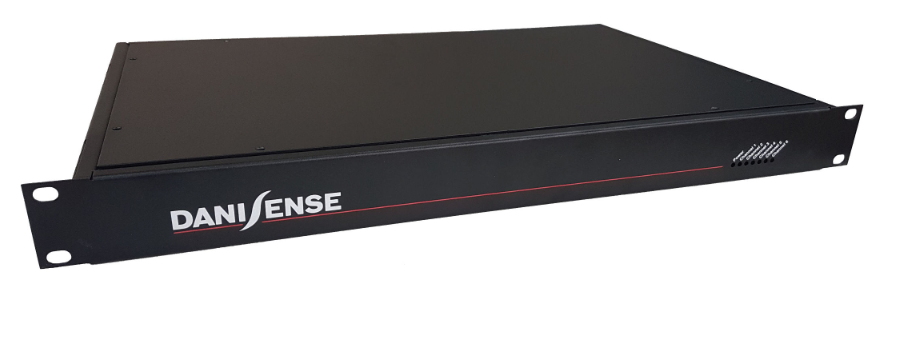

- Front LEDs indication of normal operation for each transducer and power LED for DSSIU-6-1U-V
- Forced cooling ensuring stable temperatures for VOM
- Universal autorange (100-240V AC 50/60Hz) AC input voltage or 120–370V DC input voltage.
VOM
- Ultra-stable 1V or 10V voltage output modules VOM for conversion of transducer’s output current to a voltage
