Residual Current Monitoring

Product Description

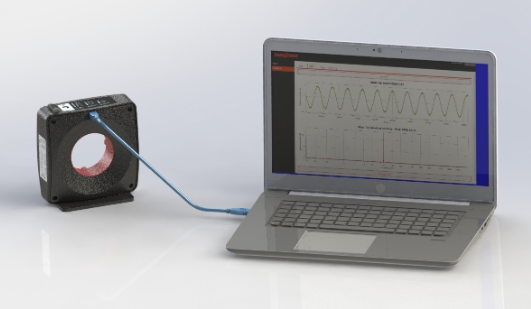

Smart Residual Current Monitor of Type B/B+ for measuring DC and AC residual currents up to 100kHz with analog 4-20mA output, relay output and USB-connectivity to PC Software for residual current analysis. Increased flexibility with user selectable settings and auto setup.

Features & Highlights
•    70mm primary cable / busbar aperture
•    DC and AC residual current measurement of Type B/B+ in the range 0-2Arms up to 100kHz
•    User selectable Frequency range, Integration time and Rated residual operating current
•    Auto setup
•    Analog 4-20mA and relay output
•    Fluxgate current measurement technology with fixed excitation frequency for enhanced accuracy and stability
•    USB-connectivity and PC Software application for residual current analysis

Product Description

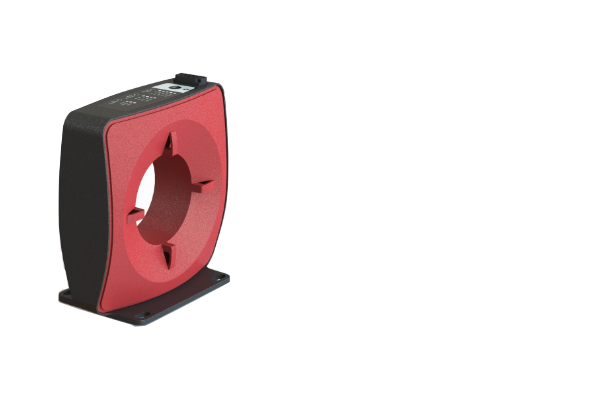

Highly flexible Residual Current Monitor of Type B/B+ for measuring DC and AC residual currents up to 100kHz, with analog 4-20mA and relay output. User selectable Frequency range, Integration time and Rated residual operating current.

 Features & Highlights

• 70mm primary cable / busbar apperture
• DC and AC residual current measurement of Type B/B+ in the range 0-2Arms up to 100kHz
• User selectable:
    - Frequency range
    - Integration time
    - Rated residual operating current
• Analog 4-20mA and relay output
• Fluxgate current measurement technology with fixed excitation frequency for enhanced accuracy and stability

Click here for a full product description
