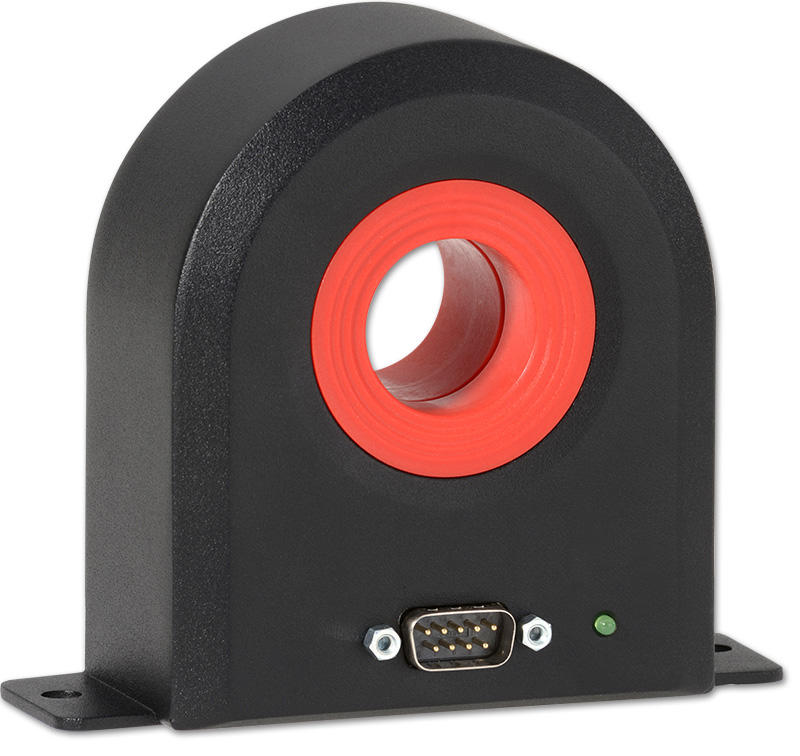

A closed loop, flux gate technology based current transducer for non-intrusive, isolated DC and AC current measurements, developed to offer extreme linearity and full industrial temperature range. The sensor has an aluminium body for shielding against EMI. The PCT sensors provide connection to LMG power analyzers via Plug ’n‘ Measure. This allows for all of the important parameters, such as the precise scaling factor, the delay compensation variable, the last calibration date, and the sensor type, to be read and used automatically by the power analyzer. Moreover, the sensors are actively supplied with power by the LMG power analyzer or its sensor supply unit.
Precision current transducer with built-in electronics
-40°C - +85°C
-40°C - +45°C
Internally from LMG95/LMG500/LMG600 series Externally from PCTSIU4 für LMG450
Solely externally from PCTSIU4 für LMG95/LMG450/LMG500 Internally from LMG600 series (number of supplied heads limited, see sensor datasheets)
Precision current transducer, max 200Arms (300A peak), Ratio 500:1, Range DC - 1 MHz
Precision current transducer, max 600Arms (900A peak), Ratio 1500:1, Range DC - 500 kHz
Precision current transducer, max 1200Arms (1800A peak), Ratio 1500:1, Range DC - 400 kHz
Precision current transducer, max 2000Arms (3000A peak), Ratio 1500:1, Range DC - 300 kHz
Adaptor for LMG600 series to connect sensors and current clamps
Four Channel Sensor Supply Unit
Four Channel Sensor Supply Unit, compact 19” rack mount 1U height
Adapter for LMG500 to connect sensors and current clamps terminating with HD15-plug
Connecting cable from PCT200/600 to LMG450 and supply unit PCTSIU4
Connecting cable from PCT200/600 to LMG500, supply by LMG500
Connecting cable from PCT200/600/1200/2000 to LMG600 series, supply by LMG600 (number of supplied heads limited, see sensor datasheets)
Plug ’n’ Measure
Plug ’n’ Measure
Convenient commissioning with zero risk of misconfiguration
The sensors of our "Plug'n Measure" series are equipped with a bus system, which allows automatic configuration of LMG-series power analyzers. All important parameters, such as the exact scaling factor, the term compensation quantity, the last calibration date and the sensor type, are automatically read by the power meter and included in the measurements. In addition, the sensors' operating power is supplied by LMG or its sensor supply unit, so that in most cases a separate power supply is not necessary. With "Plug'n Measure" mal-adjustment by the user is avoided and the best possible measurement results are guaranteed. Required connection adapters and connection cables for the LMG models can be found in the data sheets.
All ZES ZIMMER power meters of the LMG series, the current sensors of PCT series and the voltage sensors of the HST series are carefully tested, adjusted and calibrated prior to shipment and are subject to strict quality controls. ZES ZIMMER guarantees for a period of 24 months from first delivery that these products are free from defects in material or workmanship.
